Thermal resistance values may vary depending on the products.
Please see the datasheets for details.
Registration is required to download STEP files.
The information described herein is current as of publishing date of this document and is subject to change without notice.
*1: Test board described in the JESD51-7

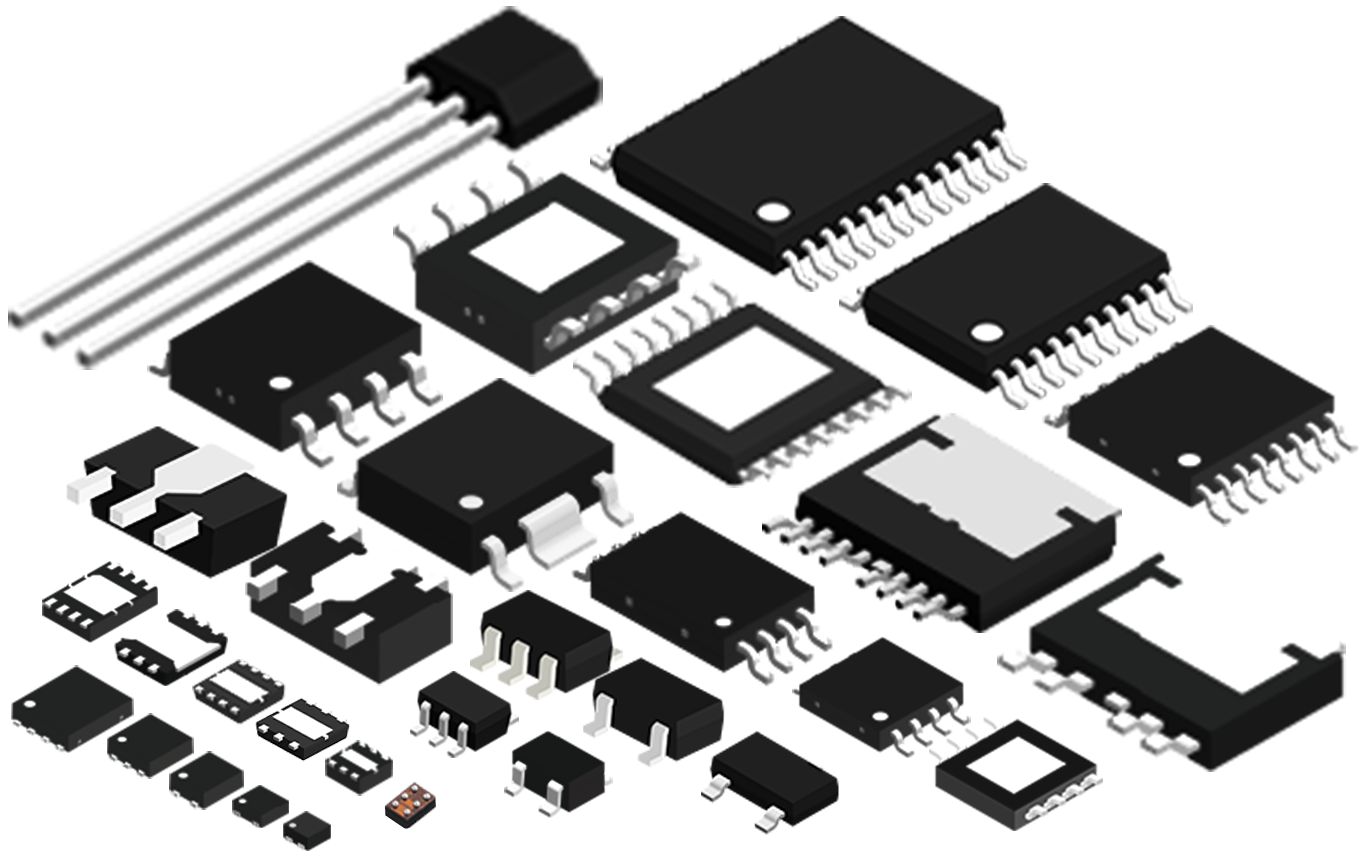

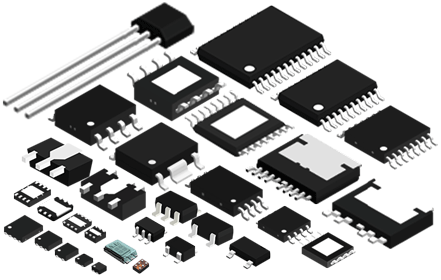

| Size (mm) | Thermal resistance value θja |
(℃/W) | (by Board) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. | Image | Package | Pin | Length | Width | Height (max.) | Code | Drawing | Soldering note | 3D CAD | Products | A | B | C | D | E |
| Search | Search | |||||||||||||||
| 1 |  |
TO-252-5S(A) | 5 | 6.5 | 6.5 | 1.4 | VA005-A | STEP | Products | 86 | 60 | 38 | 31 | 28 | ||
| 2 |  |
TO-252-9S | 9 | 6.5 | 6.5 | 1.4 | VA009-A | STEP | Products | 88 | 63 | 37 | 31 | 28 | ||
| 3 |  |
HSOP-8A | 8 | 6 | 5.02 | 1.68 | FH008-A | STEP | Products | 104 | 74 | 39 | 37 | 31 | ||
| 4 |  |
HSOP-8A | 8 | 6 | 5.02 | 1.68 | FH008-Z | STEP | Products | 104 | 74 | 39 | 37 | 31 | ||
| 5 |  |
HSOP-8Q | 8 | 6 | 5.02 | 1.68 | FU008-A | STEP | Products | 104 | 74 | 39 | 37 | 31 | ||
| 6 |  |
HSOP-6 | 6 | 6 | 5.02 | 1.75 | FH006-A | STEP | Products | 96 | 74 | - | 44 | 41 | ||
| 7 |  |
HTMSOP-8 | 8 | 4.0 | 2.9 | 0.8 | FP008-A | STEP | Products | 159 | 113 | 39 | 40 | 30 | ||
| 8 |  |
HTSSOP-16 | 16 | 6.4 | 5.12 | 1.10 | FR016-A | STEP | Products | 91 | 65 | 34 | 32 | 26 | ||
| 9 |  |
SOT-89-3 | 3 | 4 | 4.5 | 1.6 | UP003-A | STEP | Products | 145 | 99 | - | - | - | ||
| 10 |  |
SOT-89-5 | 5 | 4.5 | 4.5 | 1.6 | UP005-A | STEP | Products | 119 | 84 | - | 46 | 35 | ||
| 11 |  |
SOT-23-3 | 3 | 2.8 | 2.9 | 1.3 | MP003-A | STEP | Products | 200 | 165 | - | - | - | ||
| 12 | |
SOT-23-3 | 3 | 2.8 | 2.9 | 1.3 | MP003-C | STEP | Products | 200 | 165 | - | - | - | ||
| 13 | |
SOT-23-3S | 3 | 2.8 | 2.9 | 1.2 | MP003-D | STEP | Products | 200 | 165 | - | - | - | ||
| 14 |  |
TSOT-23-3S | 3 | 2.85 | 2.9 | 0.8 | MP003-E | STEP | Products | 225 | 190 | - | - | - | ||
| 15 |  |
SOT-23-5 | 5 | 2.8 | 2.9 | 1.3 | MP005-A | STEP | Products | 192 | 160 | - | - | - | ||
| 16 | |
SOT-23-6 | 6 | 2.8 | 2.9 | 1.35 | MP006-A | STEP | Products | 159 | 124 | - | - | - | ||
| 17 | |
SOT-23-6W (*1) | 6 | 2.8 | 2.9 | 1.3 | MP006-B | Products | - | 154 | - | - | - | |||
| 18 |  |
SC-82AB | 4 | 2.1 | 2 | 1.1 | NP004-A | STEP | Products | 236 | 204 | - | - | - | ||
| 19 |  |
SC-88A (*1) | 5 | 2.1 | 2 | 1.1 | NP005-B | Products | - | 286 | - | - | - | |||
| 20 |  |
8-Pin SOP | 8 | 6 | 5.02 | 1.75 | FJ008-D | STEP | Products | 147 | 113 | - | - | - | ||
| 21 | |
8-Pin SOP | 8 | 6 | 5.02 | 1.75 | FJ008-Z | STEP | Products | 147 | 113 | - | - | - | ||
| 22 |  |
8-Pin TSSOP | 8 | 6.4 | 3 | 1.1 | FT008-E | STEP | Products | 158 | 134 | - | - | - | ||
| 23 | |
8-Pin TSSOP | 8 | 6.4 | 3 | 1.1 | FT008-Z | STEP | Products | 158 | 134 | - | - | - | ||
| 24 |  |
16-Pin TSSOP | 16 | 6.4 | 5.1 | 1.1 | FT016-A | STEP | Products | 88 | 74 | - | - | - | ||
| 25 |  |
24-Pin SSOP | 24 | 7.6 | 7.9 | 1.4 | FS024-B | Products | 70 | 60 | - | - | - | |||
| 26 |  |
20-Pin TSSOP | 20 | 6.4 | 6.5 | 1.2 | FT020-B | Products | 68 | 59 | - | - | - | |||
| 27 |  |
TMSOP-8 | 8 | 4 | 2.9 | 0.8 | FM008-A | STEP | Products | 160 | 133 | - | - | - | ||
| 28 |  |
SNT-4A | 4 | 1.6 | 1.2 | 0.5 | PF004-A | STEP | Products | 300 | 242 | - | - | - | ||
| 29 |  |
SNT-6A | 6 | 1.8 | 1.57 | 0.5 | PG006-A | STEP | Products | 224 | 176 | - | - | - | ||
| 30 | |
SNT-6A(H) | 6 | 1.8 | 1.57 | 0.5 | PI006-A | STEP | Products | 224 | 176 | - | - | - | ||
| 31 |  |
SNT-8A | 8 | 2.46 | 1.97 | 0.5 | PH008-A | STEP | Products | 211 | 173 | - | - | - | ||
| 32 |  |
HSNT-4(0808) | 4 | 0.8 | 0.8 | 0.4 | PK004-A | STEP | Products | 402 | 336 | - | - | - | ||
| 33 | |
HSNT-4(0808)B | 4 | 0.8 | 0.8 | 0.41 | PK004-B | STEP | Products | 402 | 336 | - | - | - | ||
| 34 |  |
HSNT-4(1010) | 4 | 1 | 1 | 0.4 | PL004-A | STEP | Products | 378 | 317 | - | - | - | ||
| 35 | |
HSNT-4(1010)B | 4 | 1.0 | 1.0 | 0.41 | PL004-B | STEP | Products | 378 | 317 | - | - | - | ||
| 36 |  |
HSNT-6A | 6 | 2.5 | 2 | 0.5 | PJ006-A | STEP | Products | 195 | 157 | - | - | - | ||
| 37 |  |
HSNT-6(1212) | 6 | 1.2 | 1.2 | 0.4 | PM006-A | STEP | Products | 234 | 193 | - | - | - | ||
| 38 |  |
HSNT-6(1618) | 6 | 1.8 | 1.6 | 0.4 | IA006-A | STEP | Products | 268 | 229 | - | - | - | ||
| 39 | |
HSNT-6(2025) | 6 | 2.46 | 1.96 | 0.5 | PJ006-B | STEP | Products | 180 | 128 | 43 | 44 | 36 | ||
| 40 |  |
HSNT-8(1616) | 8 | 1.6 | 1.6 | 0.4 | PY008-A | STEP | Products | 214 | 172 | - | - | - | ||
| 41 | |
HSNT-8(1616)B | 8 | 1.6 | 1.6 | 0.41 | PY008-B | STEP | Products | 214 | 172 | 52 | 55 | 43 | ||
| 42 |  |
HSNT-8(2030) | 8 | 3 | 2 | 0.5 | PP008-A | STEP | Products | 181 | 135 | 40 | 42 | 32 | ||
| 43 |  |
DFN-6(1414)A | 6 | 1.4 | 1.4 | 0.6 | PV006-A | Products | 315 | 276 | - | - | - | |||
| 44 |  |
DFN-6(1518)A | 6 | 1.80 | 1.50 | 0.33 | PX006-A | Products | 247 | 206 | - | - | - | |||
| 45 |  |
DFN-8(1616)A | 8 | 1.6 | 1.6 | 0.6 | PW008-A | Products | 279 | 215 | - | - | - | |||
| 46 |  |
DFN-8(2020)A | 8 | 2 | 2 | 0.6 | IB008-A | STEP | Products | 242 | 182 | - | - | - | ||
| 47 | |
DFN-8(2030) | 8 | 3 | 2 | 0.5 | PP008-A | Products | 181 | 135 | 40 | 42 | 32 | |||
| 48 |  |
DFN-8(2030)A | 8 | 3 | 2 | 0.6 | PQ008-A | STEP | Products | - | - | - | - | - | ||
| 49 | |
DFN-8(2030)B | 8 | 3 | 2 | 0.80 | PQ008-B | STEP | Products | - | - | - | - | - | ||
| 50 |  |
TO-92 (*1) | 3 | 14.5 | 5.2 | 4.2 | YZ003-E | Products | - | 125 | - | - | - | |||
| 51 |  |
6-Pin HSON(A) (*1) | 6 | 3 | 2.9 | 0.9 | PD006-A | Products | - | 125 | - | - | - | |||
| 52 |  |
WLP-4B | 4 | 0.84 | 0.84 | 0.58 | HB004-C | Products | - | - | - | - | - | |||
| 53 | |
WLP-4R | 4 | 0.98 | 0.73 | 0.6 | HR004-A | Products | - | - | - | - | - | |||
| 54 |  |
WLP-6J | 6 | 1.44 | 0.96 | 0.39 | HJ006-B | Products | - | - | - | - | - | |||
| 55 |  |
WLP-6J | 6 | 1.62 | 0.96 | 0.39 | HJ006-C | Products | - | - | - | - | - | |||
| 56 |  |
WLP-8J | 8 | 1.53 | 1.16 | 0.39 | HJ008-A | Products | - | - | - | - | - | |||
| 57 |  |
WLP-16A | 16 | 2.07 | 1.93 | 0.6 | HA016-C | Products | - | - | - | - | - | |||
| 58 |  |
WLP-6L | 6 | 1.25 | 0.79 | 0.55 | HL006-A | Products | - | - | - | - | - | |||
| 59 |  |
WLP-8V | 8 | 1.52 | 1.08 | 0.35 | HV008-A | Products | - | - | - | - | - | |||
| 60 |  |
Products | - | - | - | - | - | |||||||||
| 61 |  |
Products | - | - | - | - | - | |||||||||
| 62 |  |
Products | - | - | - | - | - | |||||||||
| 63 |  |
Products | - | - | - | - | - |
