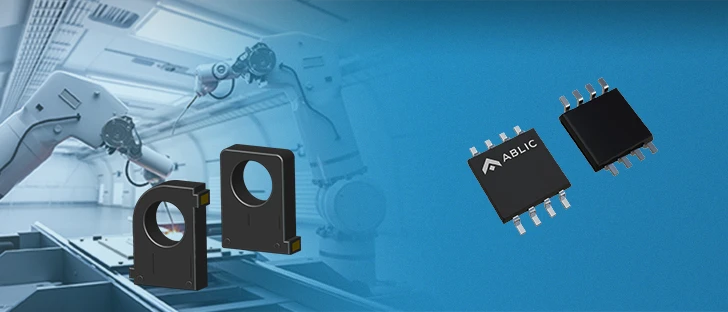

A linear Hall effect sensor IC outputs an analog voltage proportional to the magnetic flux density. It can be used to form a high-performance current sensor when combined with a magnetic core, and also to detect rotation and position when paired with a magnet.
The industry's top class* fast response and noise performance contribute to improved energy efficiency in general-purpose inverters used in applications such as solar power generation and industrial machinery.
*Based on our research
| Series Name | Datasheet | Application Note | Product Category | Buy Online | Parts List | Features | Output type | Operating voltage min. [V] | Operating voltage max. [V] | Magnetic sensitivity min. [V/T] | Magnetic sensitivity max. [V/T] | Magnetic sensitivity adjustment step max. [%] | Offset voltage adjustment step max. [mV] | Frequency bandwidth [kHz] | Output voltage response time typ. [μs] | Operation temp. min. [°C] | Operation temp. max. [°C] | Package | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series name | |||||||||||||||||||||||||
| S-5611A | Magnetic Sensor (Linear Hall Effect Sensor ICs) | chip1stop CoreStaFF Digi-Key MOUSER | Non-ratiometric | 4.5 | 5.5 | 6 | 180 | 0.15 | 1.5 | 100 to 400 | 1.25 | -40 | 125 | TMSOP-8 |
