Requirements of an automotive camera module
- Changed from VGA to 1 or 2 MP
High resolution - Must be blended into the vehicle’s appearance
Compact size - To achieve high resolution and compact size,
ISP-less
(Image Signal Processor-less)
Shrinking the size of camera parts.
Reduces the overall footprint of a switching regulator by up to 57%.
Automotive Switching Regulator
S-19932/3 Series
Buy Online
Reduces the footprint of a switching regulator
The Ultra-small package enables more compact application
The automotive-quality 18V (Absolute Maximum Ratings 22V) input, synchronous rectification and 125℃ operation switching regulator (DC-DC converter) adopt the ultra-small package HSNT-6 (2.46mm x 1.96mm).
In addition, our lineup also includes a gull wing package when mountability is a prime concern.
They can be used in a broad range of applications not only in automotive camera modules where compact size is essential, but also in Electronic Control Units (ECU) and sensors.
There is no need for a large capacitor

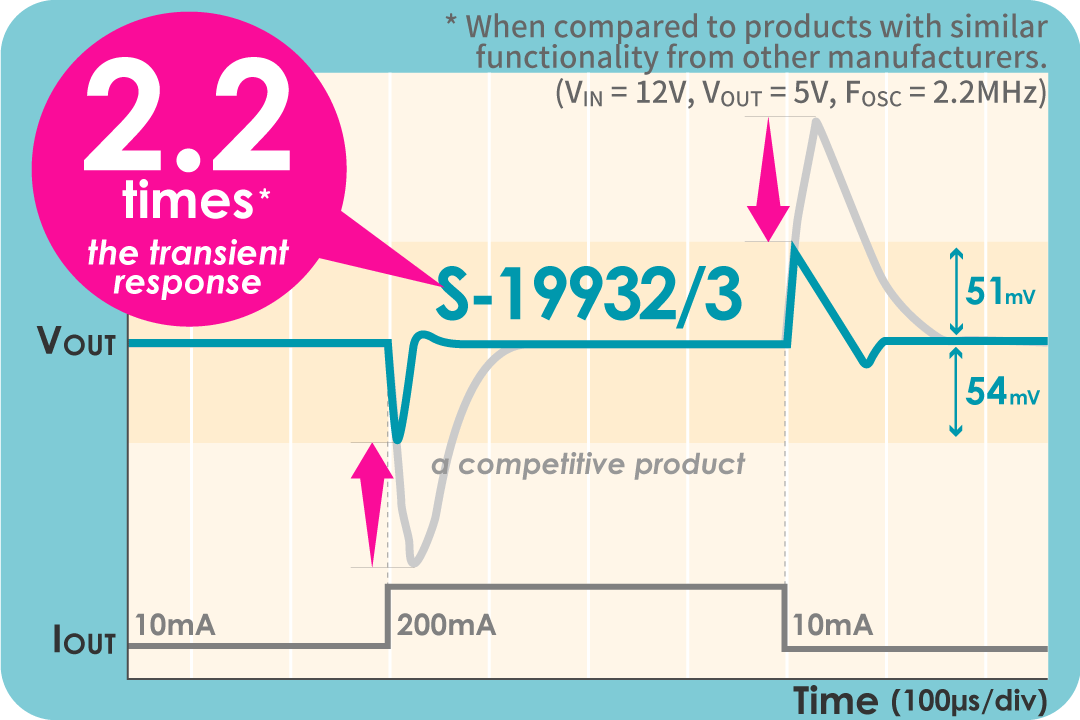

Slope compensation circuits and phase compensation circuits in the S-19932/3 Series have been optimized to provide a high transient response.
The external high output capacitors used to compensate for overshoot and undershoot have been downsized, which has also contributed to lowering costs.
External parts to reduce ripple are not required
The S-19933 Series employs a proprietary low-ripple circuit that ensures low ripple without any external parts.
It achieves 9mVp-p across the full load current range including even during PFM control, which is especially prone to ripple.
There is no need to add external parts as a countermeasure to ripple.
Applications
Automotive camera
Check application examples in the block diagram≫
ABLIC’s automotive switching regulator lineup
Specifications
| Product name | S-19932 A/B S-19933 A/B |
S-19932 C/D S-19933 C/D |
|
|---|---|---|---|
| 2.2MHz | 400kHz | ||
| Input voltage | VIN=4.0 to 18.0V | ||
| FB pin voltage accuracy | ±1.5% | ||
| Efficiency | 91% | 95% | |
| Overcurrent protection function | 1.2 A typ. (pulse-by-pulse method) | ||
| Thermal shutdown function | 170°C typ. (detection temperature) | ||
| Short-circuit protection function | Hiccup control / Latch control (Selectable) | ||
| Duty cycle | 100% duty cycle operation | ||
| Soft-start function | 5.8 ms typ. | ||
| Operation temperature range | Ta = −40°C ~ +125°C | ||
| AEC-Q100 | Qualified | ||
| Datasheet | |||
| Application note | |||
