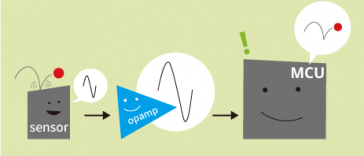

Op amps are used for processing analog signals in various circuits. ABLIC's operational amplifiers feature low voltage operation and low current consumption. The product lineup includes single output, dual output and zero drift.
| Series Name | Datasheet | Application Note | Product Category | Buy Online | Parts List | Features | Number of circuits | Input Rail-to-Rail | Operating voltage min. [V] | Operating voltage max. [V] | Current consumption (per circuit) [µA] | Input offset voltage max. [mV] | Gain bandwidth product [kHz] | Slew rate [V/μs] | Sort order | Operation temp. min. [°C] | Operation temp. max. [°C] | Package | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series name | |||||||||||||||||||||||||
| S-89110/89120 | Operational Amplifiers | chip1stop CoreStaFF Digi-Key MOUSER | 1 circuit, 2 circuits | - | 1.80 | 5.50 | 50.0, 10.0 | 4.0 | 175, 35 | 0.070, 0.015 | 4 | -40 | 125 | SC-88A, SOT-23-5, TMSOP-8, SNT-8A | |||||||||||
| S-89130/89140 | Operational Amplifiers | chip1stop CoreStaFF Digi-Key MOUSER | 2 circuits | - | 2.70 | 5.50 | 1000, 270 | 6.0, 7.0 | 3000, 1000 | 2.000, 0.500 | 5 | -40 | 125 | TMSOP-8, SNT-8A | |||||||||||
| S-89430/89431 | Operational Amplifiers | chip1stop CoreStaFF Digi-Key MOUSER | 1 circuit, 2 circuits | Yes | 0.90 | 5.50 | 0.5 | 10.0, 5.0 | 4.8 | 0.005 | 3 | -40 | 85 | SC-88A, SOT-23-5, TMSOP-8, SNT-8A | |||||||||||
| S-89630A | Operational Amplifiers | chip1stop CoreStaFF Digi-Key MOUSER | 2 circuits | Yes | 4.00 | 36.00 | 250 | 0.05 | 1200 | 0.450 | 1 | -40 | 125 | TMSOP-8 | |||||||||||
| S-89713 | Operational Amplifiers | chip1stop CoreStaFF Digi-Key MOUSER | 2 circuits | Yes | 2.65 | 5.50 | 165 | 0.01 | 240 | 0.160 | 2 | -40 | 85 | TMSOP-8, SNT-8A |
