Operation temperature : 150°C max. (S-191L/191NxxxxS) ｜ 125°C max. (S-191L/191NxxxxA) ｜ 105°C max. (S-191L/191NxxxxH)

This IC, developed using CMOS technology, is a high-accuracy window voltage detector with the supply voltage divided output that detects undervoltage and overvoltage. The detection voltage and release voltage are fixed internally with an accuracy of ±1.5%.
Apart from the power supply pin, the detection voltage input pin (SENSE pin) is also prepared, so the output is stable even if the SENSE pin voltage (V_SENSE) falls to 0 V. The SENSE pin also has a built-in reverse connection protection circuit that reduces current in the SENSE pin during a reverse connection.
The release signal can be delayed by setting a capacitor externally, and the release delay time accuracy is ±15% (C_D = 3.3 nF). The output form is Nch open-drain output.

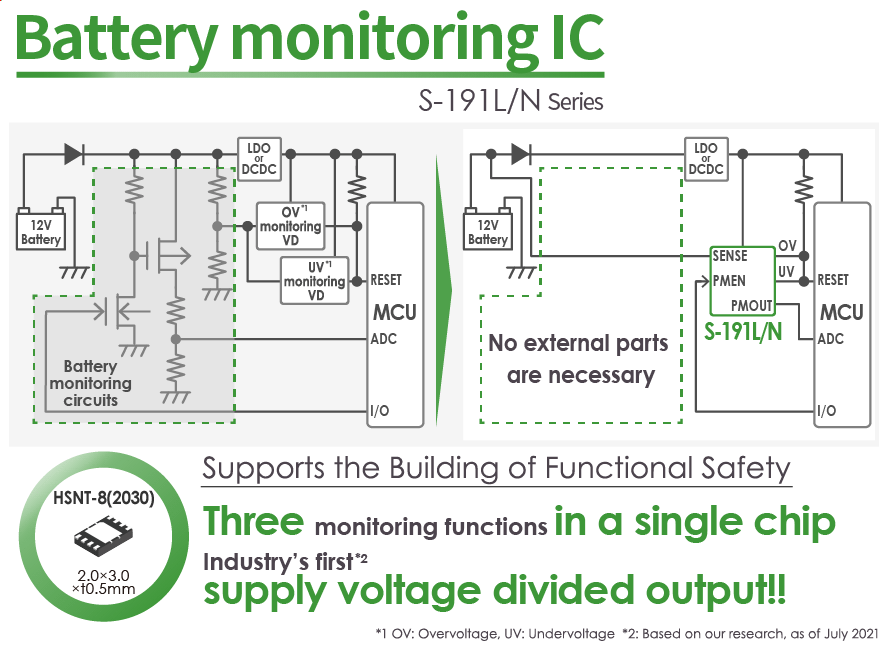

The supply voltage divided output is prepared in this IC. The supply voltage divided output is a function that divides the V_SENSE into V_SENSE/6, V_SENSE/8, V_SENSE/12 or V_SENSE/14 and outputs the voltage. For example, this function makes it possible that the IC connects to a low voltage microcontroller A/D converter directly and the microcontroller monitors a battery voltage.

Features

Detector block

Detection voltage: Undervoltage detection voltage 4.0 V to 10.0 V (0.05 V step); Overvoltage detection voltage 16.0 V to 18.0 V (0.1 V step)
Detection voltage accuracy: Undervoltage detection voltage ±1.5%; Overvoltage detection voltage ±1.5%
Hysteresis width selectable from "Available" / "Unavailable": "Available": 5.0%, 10.0%; "Unavailable": 0%
Release delay time accuracy: ±15% (CD = 3.3 nF)
Output form: Nch open-drain output

Supply voltage divider block

Output voltage: V_PMOUT = V_SENSE/6 (S-191L Series L / M / N type); V_PMOUT = V_SENSE/8 (S-191L Series P / Q / R type); V_PMOUT = V_SENSE/12 (S-191N Series L / M / N type); V_PMOUT = V_SENSE/14 (S-191N Series P / Q / R type)
Output capacitor (C_PM): A ceramic capacitor can be used (0.1 μF to 0.22 μF).
Built-in enable circuit: Ensures long battery life.

Overall

Current consumption: During supply voltage divided output operates 1.3 μA typ.; During supply voltage divided output stops 0.9 μA typ.
Built-in reverse connection protection circuit: Reduces current in the SENSE pin during a reverse connection.
Operation voltage range: 3.0 V to 36.0 V
Operation temperature range: Ta = −40°C to +125°C
Lead-free (Sn 100%), halogen-free
Withstand 45 V load dump
AEC-Q100 qualified^*1

*1. Contact our sales representatives for details.

Applications

Overvoltage detection of power supply for automotive electric component
Automotive battery voltage detection
For automotive use (engine, transmission, suspension, ABS, related-devices for EV / HEV / PHEV, etc.)

Parts List

U(Ux), S and G at the end of the product name of ABLIC Inc. were used to indicate different material specifications as “environmental code”,
however, these have now been unified into “lead-free and halogen-free” and are identical in terms of environmental quality.
Note: Lead-free plating other than 100% Sn is applied to some limited old products, therefore, please contact our sales representatives for details.
These descriptions may be different from the actual product name and parameter.
Please confirm the product name and specifications with the data sheet again.
The information herein is subject to change without notice.

Automotive, 125°C Operation, 36 V, Supply Voltage Divided Output, Window Voltage Detector with SENSE Pin Reverse Connection Protection S-191L/191NxxxxA Series
