1. Overview

ABLIC ICs ideal for Cordless Power Tools

Cordless power tools are widely used both in the home and the workplace. Cordless power tools must be tough, compact and light weight, and also need long-lasting batteries. Safe operation and safety functions are also indispensable. ABLIC supplies a wide range of ICs that are ideal for electric screwdrivers and other cordless power tools. We provide a full line of linear regulators suitable for powering motor control microcontrollers, Hall effect ICs for detecting motor rotation and rotation direction, Rail-to-Rail input CMOS operational amplifiers for calculating current. These ICs all feature low current consumption and compact size to contribute to long life of cordless power tool batteries and compact tool size. Our lineup also includes a great number of battery monitoring ICs for improving the safety of lithium-ion battery packs and secondary protection ICs that provide dual overcharge protection for even greater safety. They also ensure that applications using them comply with UL, IEC and other safety standards. ABLIC supplies a comprehensive range of ICs, from motor control through to battery monitoring that are all specially designed for electric power tools.

2. Block Circuit

  • MCU + analog front-end IC control method
  • Stand-alone protection IC control method

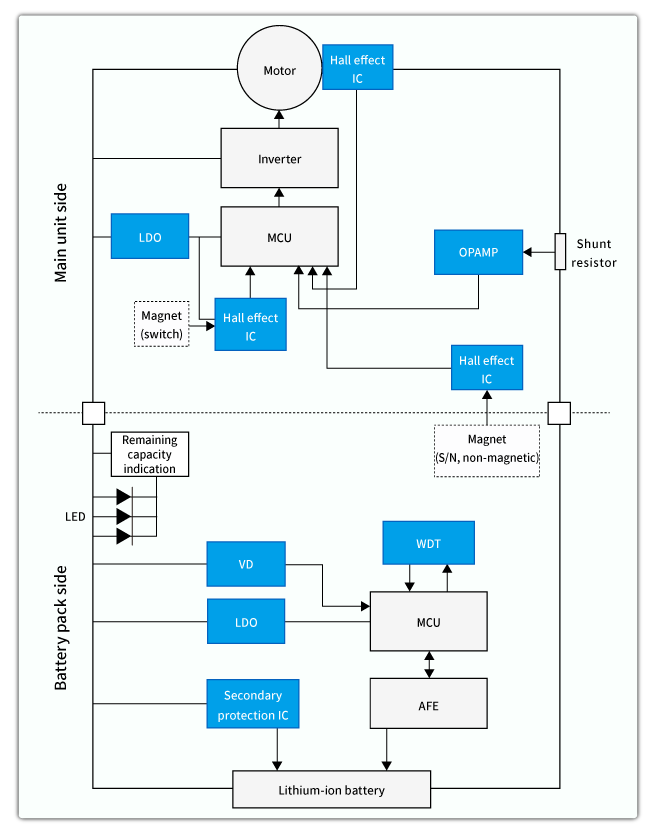

MCU + analog front-end IC control method

Click the product name for more ​product information.

MCU + analog front-end IC control method

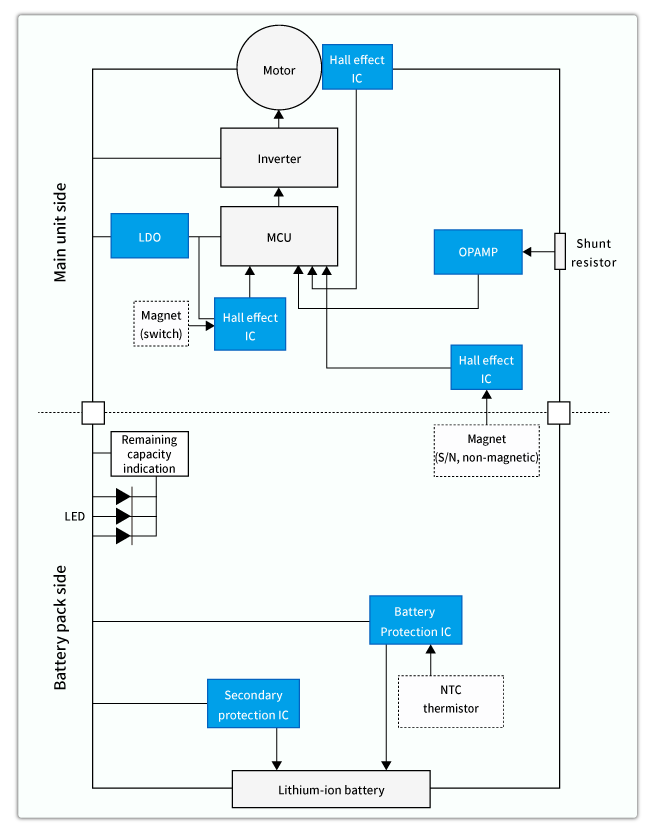

Stand-alone protection IC control method

Click the product name for more ​product information.

Stand-alone protection IC control method

*VD: Voltage detector (Reset IC)   *LDO: Low-dropout regulator   *WDT: Watchdog timer   *AFE: Analog front-end IC

MCU + analog front-end IC control method

MCU + analog front-end IC control method

Stand-alone protection IC control method

Stand-alone protection IC control method

*VD: Voltage detector (Reset IC)   *LDO: Low-dropout regulator   *WDT: Watchdog timer   *AFE: Analog front-end IC

3. ICs ideal for Cordless Power Tools

Block Product Recommended product Applications, features
Main unit/Battery pack Linear Regulator
(LDO Regulator)
S-1222 Microcontroller power supply, 30V withstand voltage
Main unit/Battery pack Linear Regulator
(LDO Regulator)
S-1212 Microcontroller power supply, 45V withstand voltage
Main unit/Battery pack Linear Regulator
(LDO Regulator)
S-1142 Microcontroller power supply, 60V withstand voltage
Battery pack Voltage Detector
(Reset IC)
S-1011 Microcontroller reset, 45V withstand voltage
Battery pack Voltage Detector
(Reset IC)
S-1009 Reset, low current consumption
Main unit Hall effect IC S-576Z Motor control, high-speed, high-accuracy, ZCL detection
Main unit Hall effect IC S-5718 Pack identification, switchable detection
Main unit Hall effect IC S-5712 Non-contact switch, low current consumption
Main unit Operational Amplifier S-89713
>>High-accuracy Operational Amplifier Ideal for Current Sensors
Current measurement, Rail-to-Rail input, low offset
Battery pack Battery Protection IC S-82B4/5 Overcharge, overdischarge, overcurrent  protection
Battery pack Battery Protection IC S-82C4/5 Overcharge, overdischarge, overcurrent and temperature protection
Battery pack Battery Protection IC S-8245 Overcharge, overdischarge, overcurrent, temperature protection and cascade function
Battery pack Battery Protection IC S-8205 Overcharge, overdischarge, overcurrent protection
Battery pack Voltage monitoring S-8255 Overcharge, overdischarge, temperature protection and cascade function
Battery pack Voltage monitoring S-82F5B Overcharge, overdischarge
Battery pack Voltage monitoring S-82H5B Overcharge, overdischarge
Battery pack Voltage monitoring S-8225 Overcharge, overdischarge protection and cascade function
Battery pack Secondary protection IC S-8265C Overcharge protection, cell balancing function
Battery pack Secondary protection IC S-82K5A Overcharge protection, cascade function
Battery pack Secondary protection IC S-82K5B Overcharge protection, cascade function
Battery pack Secondary protection IC S-82M5A Overcharge protection, cascade function
Battery pack Secondary protection IC S-82M5B Overcharge protection, cascade function
Battery pack Secondary protection IC S-82P5B Overcharge protection
Battery pack Secondary protection IC S-8215 Overcharge protection
Battery pack Secondary protection IC S-8223 Overcharge protection
Battery pack Indication of remaining battery capacity S-8229A 3-lamp LED indication
Battery pack Watchdog timer S-1410/1 Microcontroller monitoring Compact and low current consumption

4. Features

Battery Protection IC
Temperature protection
Power saving function

4-temperature monitoringTemperature protection
A single connection of an NTC thermistor to the temperature detector pin enables 4-temperature monitoring.

Power-savingPower-saving function
An external signal allows you to switch to low current consumption mode (0.1uA max.). During battery pack shipment, this function prevents consumption of battery capacity by dark current.





Series name


S-82B4/5

Datasheet

Buy Online


Series name


S-82C4/5

Datasheet

Buy Online


Series name


S-8245B/D

Datasheet

Buy Online


Series name


S-8255A

Datasheet

Buy Online


As for the ICs ideal for cordless power tool battery protection, please also refer to "Battery Protection for Cordless Power Tools".

Battery Protection IC
Secondary protection IC

Secondary ProtectionSecondary protection IC
Overcharge protection by the secondary protection IC adds a dual layer of protection to enable the design of safer battery packs. This function helps products meet power tool safety standards.





Series name


S-8265C

Datasheet

Buy Online


Series name


S-82K5A

Datasheet

Buy Online


Series name


S-82K5B

Datasheet

Buy Online


Series name


S-82M5A

Datasheet

Buy Online


Series name


S-82M5B

Datasheet

Buy Online


Series name


S-82P5B

Datasheet

Buy Online


Series name


S-8215

Datasheet

Buy Online


As for the ICs ideal for cordless power tool battery protection, please also refer to "Battery Protection for Cordless Power Tools".

ZCL™ Hall Effect IC
high-temperature
High-speed
High-accuracy

This ZCL™ hall effect IC supports all the features required by electric power tools: high-temperature operation, high-speed response, high-accuracy magnetic sensitivity and realization of high efficiency motor.





Series name


S-576Z B

Datasheet

Buy Online


Series name


S-576Z R

Datasheet

Buy Online


Omnipolar / Unipolar Detection Type Hall Effect Switch IC
Low voltage operation

Unipolar and omnipolar detectionWhen combined with a magnet, this IC simplifies implementation of contact-less switches that is a requirement in dust-proof and water-proof electric power tools.







Series name


S-5712

Datasheet

Buy Online


Omnipolar / Unipolar Detection Type Hall Effect Switch IC
Switchable detection pole

Switchable detection poleThis switchable detection pole function hall effect switch IC can distinguish the magnetic polarity of a wide variety of battery packs.









Series name


S-5718

Datasheet

Buy Online


Voltage Detector
Low power consumption

A current consumption as low as 270nA minimizes the load of, for example, battery monitoring.

Series name


S-1009

Datasheet

Buy Online


Watchdog Timer
Microcontroller monitoring

This timer monitors microcontroller operation by checking the edge that is regularly input to the microcontroller. Two modes are provided: Timeout mode that determines an error has occurred only when the interval between edge inputs is too long and Window mode that determines an error has occurred also when the interval between edge inputs is too short.

Series name


S-1410/1

Datasheet

Buy Online
