“viewphii ECG” is an ultra-compact, lightweight 12-lead electrocardiogram (ECG) with wireless data communications.

“viewphii ECG” is not a medical device.
Our products are provided as design kits for customers to develop
medical devices.

“viewphii ECG”

Features

Ultra-compact, wireless 12-lead ECG

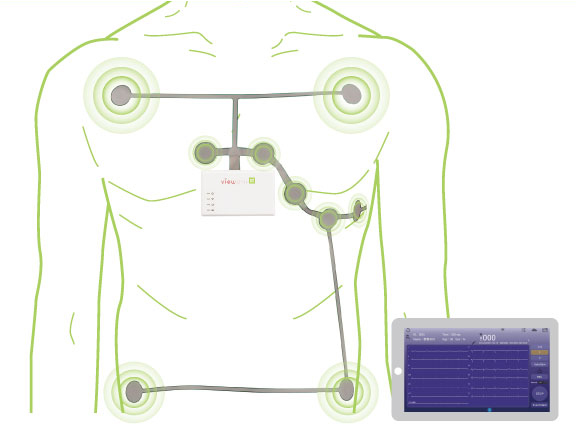

Integrated electrode (only attaches to the body)

Telemetry support

Long recording time (using halter)

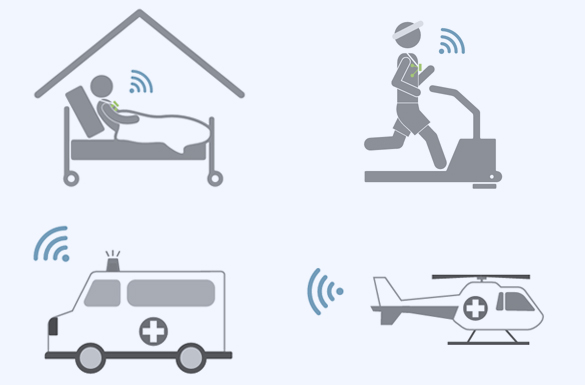

12-lead ECG from the patient at rest

Various patient exercise stress tests

24-hour continuous recording of 12-lead ECG

At ambulances and air-ambulances

Telemedicine, home medical care

Sensor unit
Size (Height × Width × Height)	77 × 50 × 15mm
Weight Internal battery	44g (including battery) Lithium-ion battery
Battery operation time	T.B.D (in continuous use with Wi-Fi connection) T.B.D (when using halter)
Charging	USB charging
Communications	IEEE 802.11b/g/n
Input channels	12 ECG leads Three vital signs sensor channels (heartbeat sound, arterial pulse, venous pulse)
Sensitivity	1/2, 1, 2
Sampling frequency	250Hz to 1kHz
Waveform display	･Standard 12 leads ･Leads I, II, and III + 3 × vital sign channels
Other functions	Heart rate display, detection of detached electrodes, manual and auto recording, hum filter, myoelectric noise filter, drift filter

Tablet
OS	Android 5.0
Resolution	1,280 × 800
